Single Stage Vacuum Transformer Oil Purifier

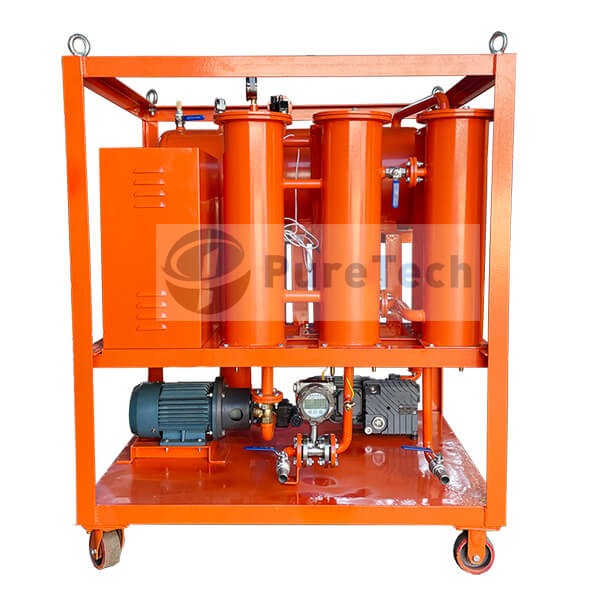

  • Skid Mounted Transformer Oil Treatment Plant

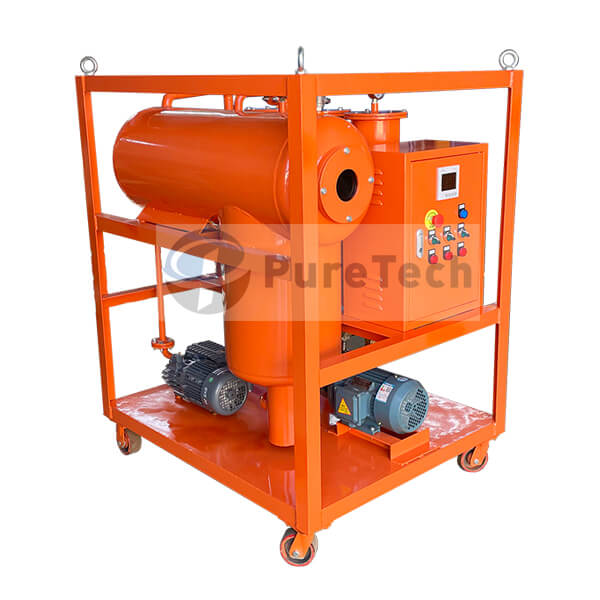

  • Skid Mounted Transformer Oil Treatment Plant

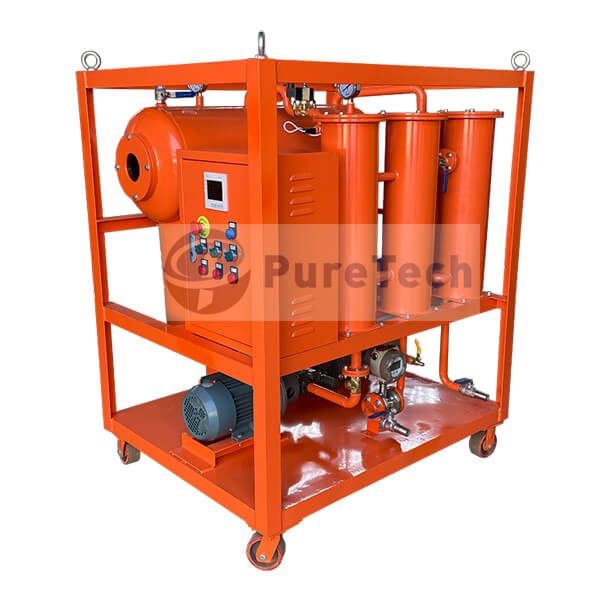

  • Skid Mounted Transformer Oil Treatment Plant

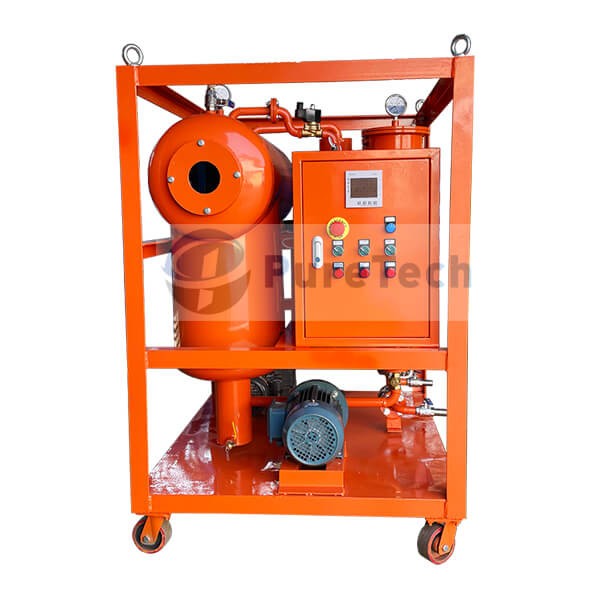

  • Skid Mounted Transformer Oil Treatment Plant
Skid Mounted Transformer Oil Treatment PlantSkid Mounted Transformer Oil Treatment PlantSkid Mounted Transformer Oil Treatment PlantSkid Mounted Transformer Oil Treatment Plant

Skid Mounted Transformer Oil Treatment Plant

  • Category: Single Stage Vacuum Transformer Oil Purifier
  • Views:5499
  • Product Origin: CHINA
  • Model: VOP
  • Flow Rate: 600 ~ 6000 liters/hour
  • Lead time: 15 ~ 20 Days
  • Product description:Skid Mounted Transformer Oil Treatment Plant is designed for filtration, degassing and dehydration treatment of transformer oil. It is a mobile transformer oil treatment plant can be used in substatio
  • INQUIRY

Description | Skid Mounted Transformer Oil Treatment Plant

PureTech mobile Skid Mounted Transformer Oil Treatment Plant (Single-stage vacuum, Model VOP) is designed for filtration, degassing and dehydration treatment of power transformer oil, it is also called as transformer oil filtration plant, Transformer Oil Dehydration plant and transformer oil degassing plant.

Skid mounted transformer oil treatment are available in different oil flow ranges from 600 liters/hour to 18,000 liters/hour. Single-stage vacuum and Double-stage High vacuum are designed for different applications.

Transformer Oil Treatment Plant features highly efficient design to achieve the most effective and efficient treatment processes of dehydration, degassing and filtration. Single-stage vacuum transformer oil treatment plant is widely applied in low voltage power transformers, oil circuit breakers, inductors and other oil-filled electrical equipment. This vacuum Transformer Oil Purifier can significantly improve the properties of unqualified transformer oil, such as breakdown voltage, moisture content, gas content, particulate content and other factors which affect the dielectric strength of transformer oil.

Model VOP adopt one vacuum pump, and suitable for low voltage transformers, such as 66KV. For high voltage or ultra high voltage power transformers, the Double-Stage High Vacuum Transformer Oil Purifier (Model DVOP) developed by PureTech is your good choice, which adopt double stage vacuum pumps, can effectively remove the water and gas from transformer oil, as well as improve BDV of insulating oil. Furthermore, Model DVOP can also be used as an vacuum drying and vacuum filling equipment during transformer maintenance.


Process | Skid Mounted Transformer Oil Treatment Plant

1. Transformers oil is drawn into the vacuum oil treatment system by the means of pressure difference (vacuum created by vacuum pump).

2. It will firstly passes through the primary filter which can filter out mechanical particles, thereby protecting the oil pump from being blocked.

3. Then the transformer oil is being heater by a eletrical heater which has thermostat to avoid overheating. Thermal vacuum treatment is proved to be the most effective way for oil dehydration and degassing.

4. The heated transformer oil flows into the vacuum degassing chamber where dehydration and degassing happens, the moisture and gas separated from oil will be drained by the vacuum pump or condensed into water stored in the water tank.

5. Transformer oil after dehydration and degassing will be pumped out of the oil purification system after passing through the fine filter which can filter out small impurities, to ensure the cleanliness of oil.

6. This machine can realize inner cycle or external cycle when oil circulation is required.


Types | Skid Mounted Transformer Oil Treatment Plant

Single Stage Vacuum Transformer Oil Purifier for Low Voltage Transformers
vacuum transformer oil purifier
mobile <a href=https://www.cqpuretech.com/High-Vacuum-Transformer-Oil-Filtration-Machine-p.html target='_blank'>Transformer Oil Filtration Machine</a>
transformer oil treatment plant

Single-Stage Vacuum Transformer Oil Purifier

(PLC Automatic Control, Skid-Mounted)

Single-Stage Vacuum Transformer Oil Purifier

(Full Frame, Skid Mounted)

Single-Stage Vacuum Transformer Oil Purifier

(Mounted with Trailer and Waterproofing Cover)

Double-Stage High Vacuum Transformer Oil Purifier

(PLC Automatic Control, Skid-Mounted)




Technical Parameters | Skid Mounted Transformer Oil Treatment Plant


Machine Parameter

Item Unit VOP-10 VOP-20 VOP-30 VOP-50 VOP-75 VOP-100 VOP-150
Flow rate liters/hour 600 1200 1800 3000 4500 6000 9000
Vacuum degree Mpa (-0.06) ~ (-0.095)
Working pressure Mpa ≤ 0.3
Temperature range 40 ~ 80
Power supply 380Volts, 50Hz, 3Phase (Or customized)
Heating power kw 9 15 24 30 48 60 90
Total power kw 11 17 27 33 54 68 100
Inlet/outlet diameter mm 25 25 32 32 44 44 50
Size Length mm 1200 1300 1400 1400 1550 1700 1800
Width mm 900 900 900 900 1100 1250 1300
Height mm 1300 1300 1300 1500 1600 1750 1950
Weight kg 300 320 350 400 500 650 900
Oil index after purification Breakdown voltage kV ≥65 (Spherical electrodes)
Water content ppm ≤ 7
Gas content % ≤0.1
Filtering accuracy micron 1 ~ 5

* OPTIONAL CONFIGURATIONS: PLC automatic control system, Fully-Touch Screen, Mobile Trailer, Weather-proof Enclosure, Online Oil Testing Instruments, etc.

* Please inquire us for other flow rates or types.

* The machine size and weight will change slightly due to different configurations. Customized requirements are accepted.

* Other Transformer maintenance equipment for selection accordingly.

transformer vacuuming system
transformer air drying system
SF6 recycling and filling machine

Vacuum Pumping System

(Transformer Evacuation)

Dry Air Generator SF6 Gas Recovery and Refilling System

Projects Reference | Skid Mounted Transformer Oil Treatment Plant

transformer oil filtration projects of puretech oil filtration


Services | Skid Mounted Transformer Oil Treatment Plant

12 months of quality guarantee for non-human damage.

Lifelong maintenance and spare parts supply.

Free training on operation, maintenance and troubleshooting at PureTech factory.

Puretech engineers go to customer site for commissioning and training (payable service).

• Design accept user's customization.

puretech is a manufacturer of oil purification systems
