Double Stage Vacuum Transformer Oil Purifier

  • Double Stage Vacuum High-Efficiency Transformer Oil Filtration System
  • Double Stage Vacuum High-Efficiency Transformer Oil Filtration System
  • Double Stage Vacuum High-Efficiency Transformer Oil Filtration System
  • Double Stage Vacuum High-Efficiency Transformer Oil Filtration System
Double Stage Vacuum High-Efficiency Transformer Oil Filtration SystemDouble Stage Vacuum High-Efficiency Transformer Oil Filtration SystemDouble Stage Vacuum High-Efficiency Transformer Oil Filtration SystemDouble Stage Vacuum High-Efficiency Transformer Oil Filtration System

Double Stage Vacuum High-Efficiency Transformer Oil Filtration System

  • Category: Double Stage Vacuum Transformer Oil Purifier
  • Views:245002
  • Product Origin: CHINA
  • Model: DVOP-C (Double Vacuum Chambers)
  • Flow Rate: 3000 ~ 18000 liters/hour
  • Lead time: 15 ~ 20 Days

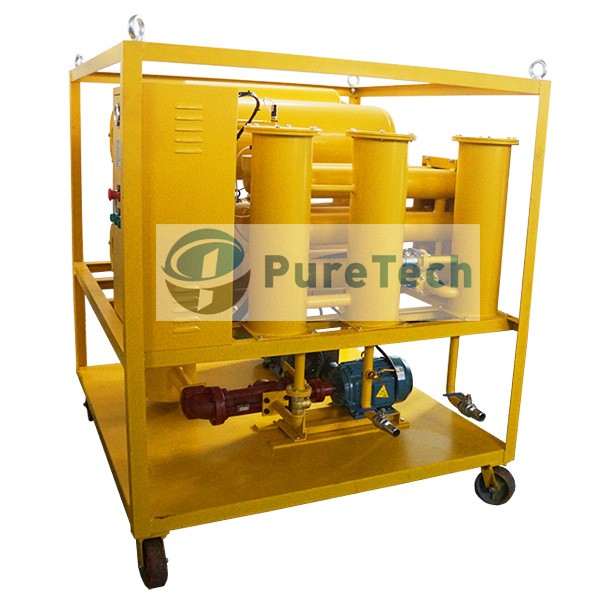

  • Product description:DVOP-C Double Stage Vacuum High-Efficiency Transformer Oil Filtration Machine (oil treatment plant) adopts two-stage vacuum chambers which improve the efficiency of oil dehydration and degassing.
  • INQUIRY


Application of Transformer Oil Filtration System (Double-stage vacuum chamber type)

The PureTech mobile Double-Stage Vacuum High-Efficiency Transformer Oil Filtration System (Model DVOP-C) is designed with double vacuum chambers on the basis of Double-Stage Vacuum Transformer Oil Purifier (Model DVOP), and it is mainly used to improve the efficiency of transformer oil dehydration and degasification for above 110KV EHV transmission and distribution equipment, substation and more than 500KV UHV transformers etc.

Compared to Model DVOP, the structure of Two-stage horizontal Vacuum Chambers further enlarge the evaporation area of transformer oil under vacuum, which greatly improve the working efficiency and effect of degassing and dehydration within one pass. After purification, the water content of transformer oil will be reduced to less than 3 ppm, and breakdown voltage will be improved to above 75KV.

In addition, Model DVOP-C can also be used as an vacuum drying and vacuum filling equipment during transformer maintenance.


Working Principle of Transformer Oil Filtration System (Double-stage vacuum chamber type)


Under vacuum and negative pressure state, the water will be vaporized in low temperature, the higher vacuum state,the lower of water boiling point, and the water is vaporized faster. Even under same temperature, water can be removed faster under vacuum state. Transformer oil firstly goes into electric heater after purified by one coarse filter, oil is heated to the set temperature which is controlled and maintained by the temperature controller. Then oil goes in to vacuum chamber to become oil film by the film sprayer. In vacuum chamber, water becomes vapor with gases to be discharged by vacuum.

The transformer oil after drying and degassing will flow through two more fine filters and then be pumped out of system.


Features of Transformer Oil Filtration Machine System (Double-stage vacuum chamber type)

Double-stage horizontal chambers further enlarges the evaporation area in one pass, greatlty improve the effect and efficiency of oil dehydration and degasification.

Double-stage vacuum pumps ensures the reliable vacuum condition.

Multi-stage filtration ensures the high oil filtering accuracy to be 1 micron.

Multifunctional integrated equipment, can be used oil treatment, vacuum oil filling and vacuum drying.  (*More functions can be customized according to your requirements.)

Model DVOP-C Transformer Oil Purifier can work offline or online under the safe operation.

A regeneration device can be mounted or connected if needed for oil regeneration.

Online oil testers, trailer type with road-worthy wheels, weather-proof enclosure and other spare parts are available for selection.


Specification of Transformer Oil Filtration System (Double-stage vacuum chamber type)

Machine Parameter

Item Unit DVOP-C-30 DVOP-C-50 DVOP-C-75 DVOP-C-100 DVOP-C-150 DVOP-C-200 DVOP-C-300
Flow rate liters/hour 1800 3000 4500 6000 9000 12000 18000
Vacuum degree Mpa (-0.08) ~ (-0.099)
Working pressure Mpa ≤ 0.3
Temperature range 40 ~ 80
Power supply 380Volts, 50Hz, 3Phase (Or customized)
Heating power kw 24 30 48 60 90 120 130
Total power kw 26 34 54 68 100 135 146
Inlet/outlet diameter mm 32 32 44 44 50 58 65
Size Length mm 1250 1350 1550 1800 2000 2100 2300
Width mm 900 1000 1150 1400 1750 1850 2000
Height mm 1450 1500 1700 1750 1800 2250 2300
Weight kg 500 600 800 1100 1300 1900 2300
Oil index after purification Breakdown voltage kV ≥75 (Spherical electrodes)
Water content ppm ≤3
Gas content % ≤0.1
Filtering accuracy micron 1

* OPTIONAL CONFIGURATIONS: PLC automatic control system, Fully-Touch Screen, Mobile Trailer, Weather-proof Enclosure, Online Oil Testing Instruments, etc.

* Please inquire us for other flow rates or types.

* The machine size and weight will change slightly due to different configurations.The machine size and weight will change slightly due to different configurations.
