Generally, the transformer oil is filled in the oil tank and has some contact with the air. When the transformer is on-load, due to the oxygen in the air, the high temperature caused by the loss of electric energy, as well as the close contact between the transformer oil and the metal, the hydrocarbon in the oil is oxidized, or decomposed, or polymerized to form acids, resins, asphalt, coke and other impurities, which gradually make the transformer oil quality tend to deteriorate: the acid value increases, the water content increases, and the breakdown voltage decreases, If we do not deal with it in time and improve the quality of transformer oil properly, it will seriously affect the continuous safe operation of transformer.

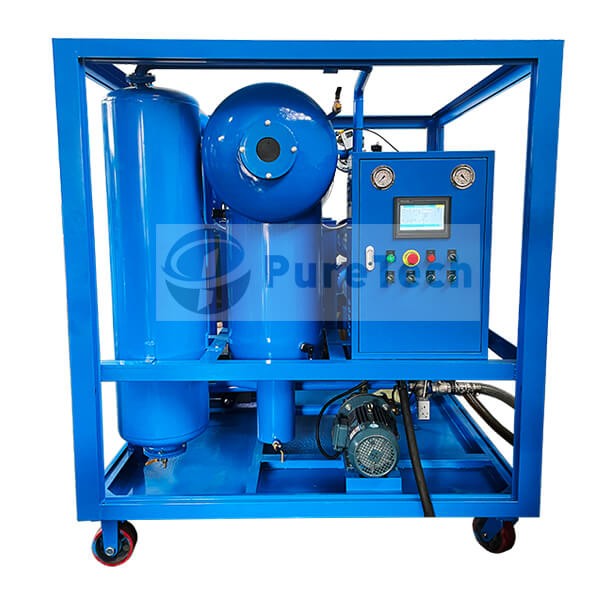

The PureTech mobile Double-Stage High Vacuum Transformer Oil Regeneration Machine (Model DVOP-R) is designed as a complete oil processing system which can perform vacuum dehydration, degasification and oil filtration, as well as oil regeneration. It adopt two-stage vacuum pumps, namely rotary vane vacuum pump and roots booster vacuum pump, they are especially applied to transformer oil treatment of 110KV,220KV,500KV,750KV,1000KV power transmission line. The regeneration device is filled with one or two special sorbent, it cannot only improve oil's breakdown voltage and dielectric strength, but also improve oil color to the original one.
In addition, Model DVOP-R can also be used as an vacuum drying and vacuum filling equipment during transformer maintenance.
• A complete oil purification,oil dehydration and oil regeneration system.
• Double-stage high vacuum improve the effect and efficiency of oil dehydration and degasification.
• Multi-stage filtration ensures the high oil filtering accuracy.
• Complete restoration of transformer oil parameters and properties.
• Save the cost of buying new transformer oil.
• Multifunctional integrated equipment, can be used oil treatment, vacuum oil filling and vacuum drying. (*More functions can be customized according to your requirements.)
• The uniquely designed “T” vacuum chamber enlarges the oil evaporation area more than the traditional design, so as to achieve a better dehydration and degassing effect.
• Transformer Oil Regeneration System can work offline or online under the safe operation.
• The regeneration device can be switched on/off as required.
• Online oil testers, trailer type with road-worthy wheels, weather-proof enclosure and other spare parts are available for selection.
Specification of Transformer Oil Regeneration Machine
|
Machine Parameter |
Item | Unit | DVOP-R-30 | DVOP-R-50 | DVOP-R-75 | DVOP-R-100 | DVOP-R-150 | DVOP-R-200 | DVOP-R-300 | |
| Flow rate | liters/hour | 1800 | 3000 | 4500 | 6000 | 9000 | 12000 | 18000 | ||
| Vacuum degree | Mpa | (-0.08) ~ (-0.099) | ||||||||
| Working pressure | Mpa | ≤ 0.3 | ||||||||
| Temperature range | ℃ | 40 ~ 80 | ||||||||
| Power supply | 380Volts, 50Hz, 3Phase (Or customized) | |||||||||
| Heating power | kw | 24 | 30 | 48 | 60 | 90 | 120 | 130 | ||
| Total power | kw | 26 | 34 | 54 | 68 | 100 | 135 | 146 | ||
| Inlet/outlet diameter | mm | 32 | 32 | 44 | 44 | 50 | 58 | 65 | ||
| Size | Length | mm | 1250 | 1350 | 1550 | 1800 | 2000 | 2100 | 2300 | |
| Width | mm | 900 | 1000 | 1150 | 1400 | 1750 | 1850 | 2000 | ||
| Height | mm | 1450 | 1500 | 1700 | 1750 | 1800 | 2250 | 2300 | ||
| Weight | kg | 500 | 600 | 800 | 1100 | 1300 | 1900 | 2300 | ||
| Oil index after purification | Breakdown voltage | kV | ≥75 (Spherical electrodes) | |||||||
| Water content | ppm | ≤5 | ||||||||
| Gas content | % | ≤0.1 | ||||||||
| Filtering accuracy | micron | 1 | ||||||||
| Flash point |
℃ |
≥140 |
||||||||
| Water-soluble acid | PH | 5 ~ 7 | ||||||||
| Acid value | mgKOH/g |
≤0.01 |
||||||||
| Dielectric loss tangent |
tg(90℃)% |
≤0.002 |
||||||||
* OPTIONAL CONFIGURATIONS: PLC automatic control system, Fully-Touch Screen, Mobile Trailer, Weather-proof Enclosure, Online Oil Testing Instruments, etc.
* Please inquire us for other flow rates or types.
* The machine size and weight will change slightly due to different configurations.The machine size and weight will change slightly due to different configurations.
• 12 months of quality guarantee for non-human damage.
• Lifelong maintenance and spare parts supply.
• Free training on operation, maintenance and troubleshooting at PureTech factory.
• Puretech engineers go to customer site for commissioning and training (payable service).
• Design accept user's customization.
